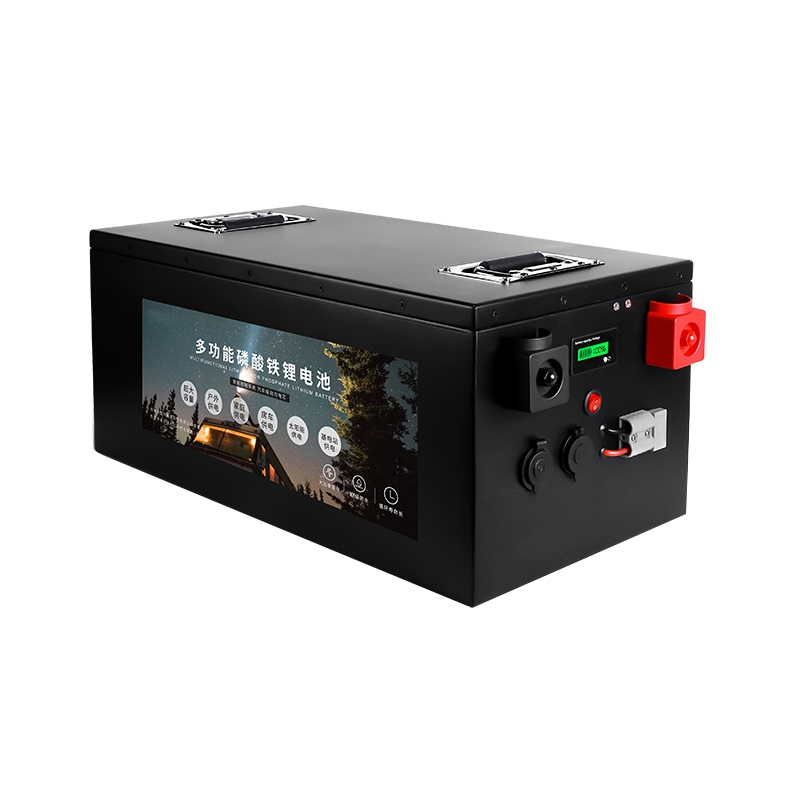

24V 400Ah Lithium Battery Pack Solar Lifepo4 For Home Electric Forklift
Specification
|
Function Parameter
|
|
Norminal Battery Energy
|
10kwh
|
|
Norminal Capacity
|
400Ah
|
|
Norminal Voltage
|
24V
|
|
Internal Resistance
|
≤22mΩ
|
|
Cycle Life
|
>6000
|
|
Months Self Discharge
|
<3%
|
|
Charge Data
|
|
DC Normal Charge Voltage
|
54.75±1Vdc
|
|
Charge Mode
|
0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV)
|
|
Recommended Charger Current
|
≤200A
|
|
Allowed Max. Charge Current
|
200Adc
|
|
Charge Cut-off Voltage
|
54.75±1Vdc
|
|
Discharge Data
|
|
Continuous Discharge Current
|
200A
|
Allowed Max. discharge current
|
|
|
Rang of DC discharge voltage
|
37.5V-54.75Vdc
|
|
Working Condition
|
|
Charge Temperature
|
0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
|
|
Discharge Temperature
|
-20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
|
|
Storage Temperature
|
0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
|
|
Enclosure Protection Level
|
IP20
|
|
Mechanical Data
|
|
Cell & Method
|
3.2V 100Ah, Prismatic
|
|
Shell material
|
Iron
|
|
Dimensions
|
/
|
|
Weight (lbs./kg.)
|
/
|
Application:
* UPS
* Solar &Wind Power System
* Golf Cart
* Electric Vehicle , E-bike, E-rickshaw etc.
* Lighting
* Wheelchairs and scooters
Six reason for why choosing us
1. Automative grade batteries
2. High security
3. Long cycle life
4. Large capacity
5. Light weight
6. Smart chip
Feature
1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, thousands of cycles, 100% DOD.
2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
3. Maintenance free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Can be charged using most standard lead acid charge (set).
7. Wide temperature range: -20 ° C ~ 60 ° C.
8. Support for series application extensions (up to 512V)
If you need other lifepo4 battery with case + protective BMS board, welcome to contact us.
